Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40

I'm Online Chat Now

Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40

Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40

Large Image :  Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40

Product Details:
Place of Origin: zhejiang
Brand Name: huaxiang
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $637.00/pieces 1-19 pieces

Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40

Description
Type: Coating Production Line Substrate: Steel
Condition: New Machine Type: Powder Coating Machine, Coating Equipment
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Coating: Vacuum Coating
Dimension(L*W*H): Customized Warranty: 1 Year
Key Selling Points: Competitive Price Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location: France, Saudi Arabia, Russia, Spain, Uzbekistan Weight (KG): 40
Product Name: Spray Coating Machine Function: Metal Surface Powder Coating
Highlight:

building powder coating machine

,

customized powder coating machine

,

building powder coating spray machine

Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 0

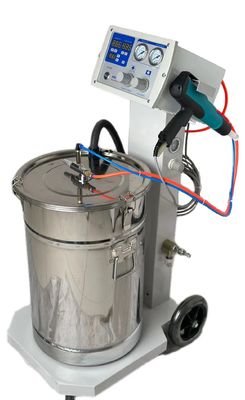

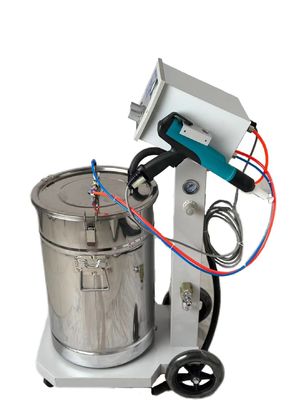

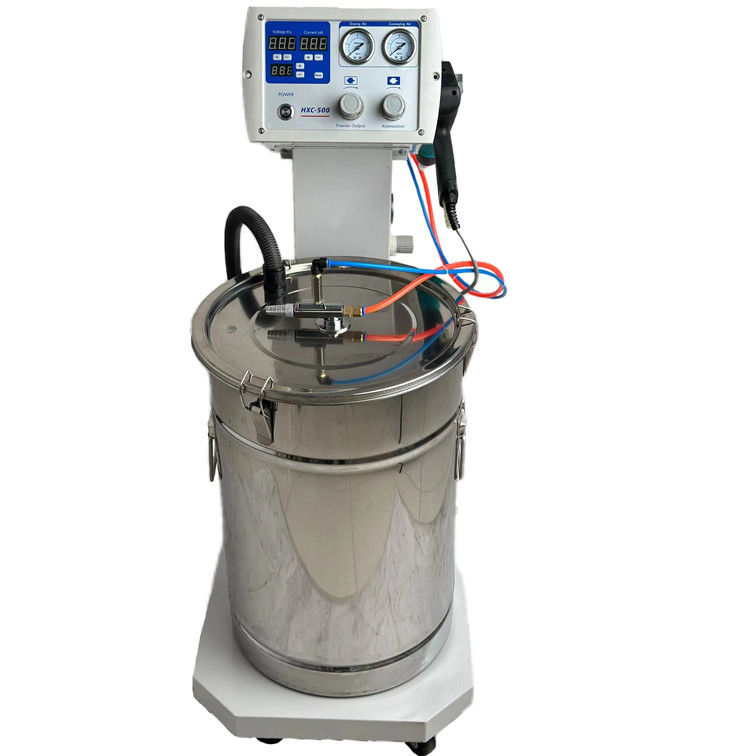

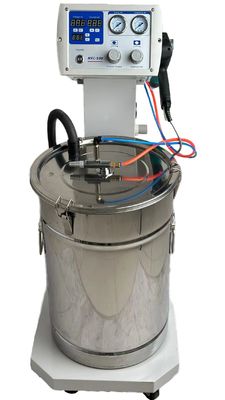

Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine (PHIRST) for High Quality Coating on Metal surface

The KCI electrostatic powder spray gun is a specialized coating device widely used in the industrial powder coating field. Here are some of the main features and advantages of the KCI electrostatic powder spray gun:

  1. High Efficiency:

    • The KCI spray gun is designed for optimal performance, enabling fast spraying and increasing production efficiency.
  2. Uniform Coating:

    • Utilizing advanced electrostatic spraying technology, it ensures an even coating and reduces variations in thickness.
  3. Excellent Adhesion:

    • Through electrostatic charging, the powder adheres better to the surface of the workpiece, enhancing coating quality.
  4. Flexible Adjustment:

    • Spraying parameters (such as voltage, spraying speed, and powder flow) can be flexibly adjusted to meet the requirements of different workpieces.
  5. Strong Process Adaptability:

    • The KCI spray gun is suitable for various powder coatings, including polyester and epoxy, fulfilling diverse coating needs.
  6. Easy Maintenance:

    • The design of the equipment considers ease of maintenance, reducing downtime and improving production efficiency.
  7. Energy Efficiency and Environmental Friendliness:

    • The KCI spray gun demonstrates good economic and environmental performance in powder usage and recovery, minimizing material waste.

Voltage
100~240VAC
Frenquency
50/60HZ
 power
50W
Safety Level
IP54
Ambient Temperature
0-40°C
Input Air pressure
0.55MPa(5.5bar,80PSI)
Maximum powder injection
600g/min
Gun weight
480g
Maximum Output Voltage
120kv
 Maximum Output Current
120µA
The length of Powder Tube
3.5meters
Accessories included in the machine
Quantity
Gun
1 SET

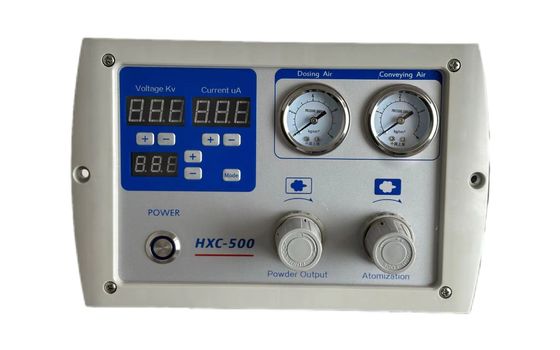

Controller
1 SET
Low Temperature Soft Powder Pipe
1 SET /3.5Meters
Vertical Powder Pump
1 SET
Stainless Steel Barrel
1 SET /40L-45L
Overflow Pipe
1 SET
Movable Trolley
1 SET
Oil and Water Separator
1 SET
Consumables
Some
Net weight of machine
40KG
package  Size ,Weight
500mm(L)*500mm(W)*1020mm(H),  45-50KG
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 1
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 2
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 3
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 4
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 5
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 6
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 7
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 8
Metal / PTFE / Epoxy Powder Electrostatic Powder Coating Machine PHIRST Weight KG 40 9
