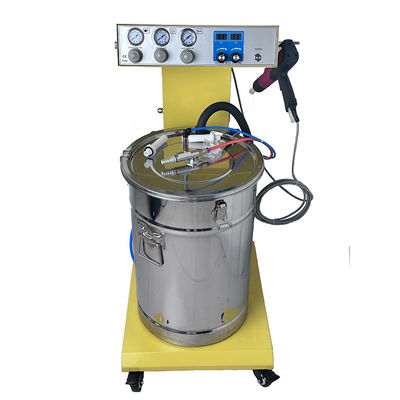

Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance

I'm Online Chat Now

Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance

Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance

Large Image :  Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance

Product Details:
Place of Origin: zhejiang
Brand Name: huaxiang
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $388.00/pieces 1-20 pieces

Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance

Description
Type: Coating Production Line Substrate: Steel
Condition: New Machine Type: Powder Coating Machine, Coating Equipment
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Coating: Vacuum Coating
Dimension(L*W*H): Customized Warranty: 1 Year
Key Selling Points: Competitive Price Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location: France, Saudi Arabia, Russia, Spain, Uzbekistan Weight (KG): 40
Product Name: Spray Coating Machine Function: Metal Surface Powder Coating
Highlight:

Optiflex 2B Powder Coating Paint Machine

,

Vacuum Powder Coating Paint Machine

,

Moisture Resistance Powder Coating Spray Machine

Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 0
2025 Gema Optiflex 2 B Electrostatic powder coating paint spray machine

1.we had manufacturued and sold it for more than 20 years, Because of its economic price and good quality with low repairing ratio. It is wil usually used globally and becomes more and more popular by our both domestic and abrod customers;

2.This electrostatic powder coating machine is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". Applying the electrostatic powder coating to objects is to give negative electric charge to the powder, which is then sprayed towards your workpiece by high voltage electrostatic and then the power will be attracted onto the workpiece.

3.We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.


Voltage
100~240VAC
Frenquency
50/60HZ
 power
50W
Safety Level
IP54
Ambient Temperature
0-40°C
Input Air pressure
0.55MPa(5.5bar,80PSI)
Maximum powder injection
600g/min
Gun weight
480g
Maximum Output Voltage
120kv
 Maximum Output Current
120µA
The length of Powder Tube
3.5meters
Accessories included in the machine
Quantity
Gun
1 SET
Controller
1 SET
Low Temperature Soft Powder Pipe
1 SET /3.5Meters
Vertical Powder Pump
1 SET
Stainless Steel Barrel
1 SET /40L-45L
Overflow Pipe
1 SET
Movable Trolley
1 SET
Oil and Water Separator
1 SET
Consumables
Some
Net weight of machine
40KG
package  Size ,Weight
500mm(L)*500mm(W)*1020mm(H),  45-50KG
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 1
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 2
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 3
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 4
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 5
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 6
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 7
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 8
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 9
Optiflex 2B Powder Coating Paint Machine Vacuum Moisture Resistance 10
