Steel Substrate Powder Coating Function with Advanced Electrostatic Power Coating Gun

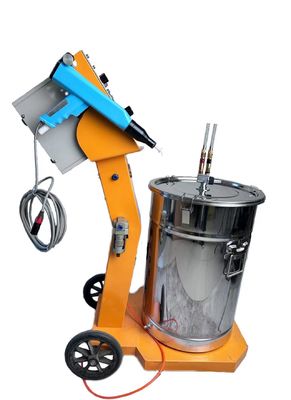

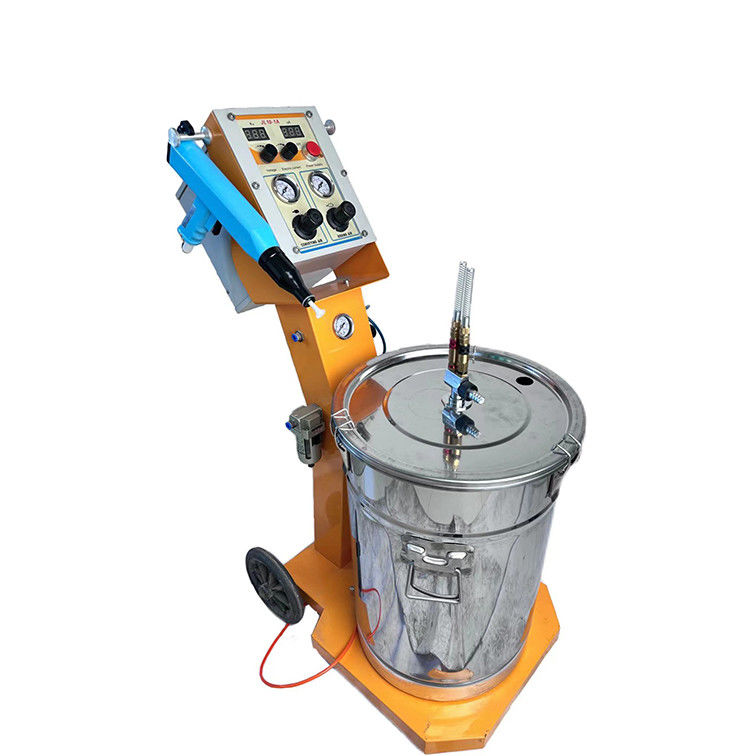

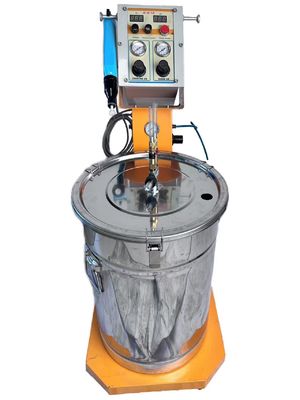

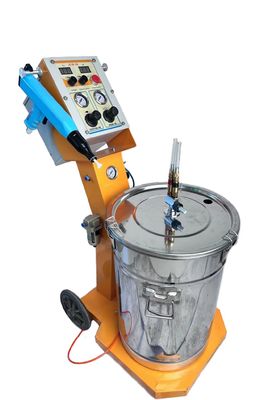

Large Image : Steel Substrate Powder Coating Function with Advanced Electrostatic Power Coating Gun

Product Details:

Place of Origin:	zhejiang
Brand Name:	huaxiang

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$686.00/pieces 1-10 pieces

Contact Now

Steel Substrate Powder Coating Function with Advanced Electrostatic Power Coating Gun

Description

Type:	Coating Production Line	Substrate:	Steel
Condition:	New	Machine Type:	Powder Coating Machine, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Coating:	Vacuum Coating
Dimension(LWH):	Customized	Warranty:	1 Year
Key Selling Points:	Competitive Price	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location:	France, Saudi Arabia, Russia, Spain, Uzbekistan	Weight (KG):	40
Product Name:	Spray Coating Machine	Function:	Metal Surface Powder Coating
Highlight:	steel substrate powder coating machine , steel substrate powder coating spray machine , building powder coating machine

HXC Electrostatic Powder Coating Machine
An electrostatic powder coating machine is a device that utilizes electrostatic principles to spray powder coatings onto the surface of workpieces. It is widely used for coating metals, plastics, and other materials, offering advantages such as uniform coating, strong adhesion, and environmental friendliness.

Environmentally Friendly: Powder coatings contain no solvents, resulting in very low volatile organic compound (VOC) emissions.
High Coating Quality: The coating is uniform, has strong adhesion, and is resistant to wear and corrosion.
High Material Utilization: Due to electrostatic attraction, unadhered powder can be recycled and reused.

China supply factory price power coating spraying equipment with electrostatic power coating gun

_Voltage	_100~240VAC
_Frenquency	_50/60HZ
_power	_50W
_{Safety Level}	_IP54
_{Ambient Temperature}	_0-40°C
_{Input Air pressure}	_{0.55MPa(5.5bar,80PSI)}
_{Maximum powder injection}	_600g/min
_{Gun weight}	_480g
_{Maximum Output Voltage}	_120kv
_{Maximum Output Current}	_120µA
_{The length of Powder Tube}	_3.5meters
Accessories included in the machine	Quantity
_Gun	_{1 SET}
_Controller	_{1 SET}
_{Low Temperature Soft Powder Pipe}	_{1 SET /3.5Meters}
_{Vertical Powder Pump}	_{1 SET}
_{Stainless Steel Barrel}	_{1 SET /40L-45L}
_{Overflow Pipe}	_{1 SET}
_{Movable Trolley}	_{1 SET}
_{Oil and Water Separator}	_{1 SET}
_Consumables	_Some
Net weight of machine	40KG
package Size ,Weight	500mm(L)500mm(W)1020mm(H), 45-50KG
