PT-S45-5 Powder Coating Spraying Gun for Steel Substrates Coating Production Line

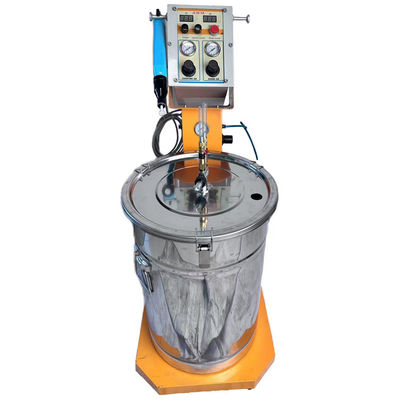

Large Image : PT-S45-5 Powder Coating Spraying Gun for Steel Substrates Coating Production Line

Product Details:

Place of Origin:	zhejiang
Brand Name:	huaxiang

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$665.00/pieces 1-19 pieces

Contact Now

PT-S45-5 Powder Coating Spraying Gun for Steel Substrates Coating Production Line

Description

Type:	Coating Production Line	Substrate:	Steel
Condition:	New	Machine Type:	Powder Coating Machine, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Coating:	Vacuum Coating
Voltage:	110V,220V,380V,460V, 110v/220v	Power:	50KW
Dimension(LWH):	Customized	Warranty:	1 Year
Key Selling Points:	Competitive Price	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	None	Weight (KG):	28
Product Name:	Spray Coating Machine	Function:	Metal Surface Powder Coating
Maximum Powder Injection:	600g/min	Maximum Output Voltage:	0-100KV ( Adjustable)
Highlight:	pt-s45-5 powder coating machine , pt-s45-5 powder coating spray machine , building powder coating machine

Spraying Gun Paint 450g/min PT-S45-5 Powder Coating Electrostatic Sprayer Painting Equipment Machine Metal Coating Machinery 33

Electrostatic powder spraying gun, the key spraying equipment in powder spraying equipment, its main working principle is to use a high voltage electrostatic generator to ionize the air around the powder spraying gun head to produce a negative electrostatic magnetic field, so that the powder is adsorbed to the workpiece with a positive electrode to be painted.

Voltage	110v/220v
Frenquency	50/60HZ
Input power	50W
Max. output current	200ua
Output power voltage	0-100kv
Input Air pressure	0.3-0.6Mpa
Maximum output voltage	0-100KV ( adjustable)
Maximum powder injection	600g/min
Polarity	Negative
Gun weight	480g
