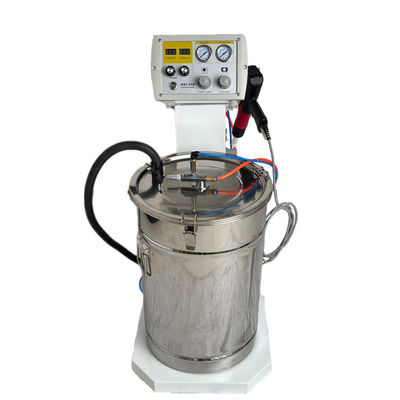

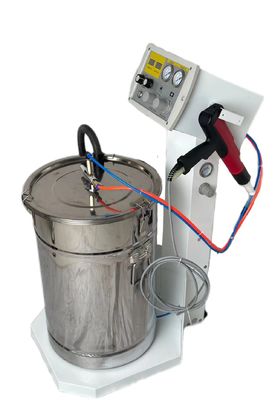

Electrostatic Spray Gun Powder Coating Machine for Steel Substrate Coating Needs

Large Image : Electrostatic Spray Gun Powder Coating Machine for Steel Substrate Coating Needs

Product Details:

Place of Origin:	zhejiang
Brand Name:	huaxiang

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$643.00/pieces 1-1 pieces

Contact Now

Electrostatic Spray Gun Powder Coating Machine for Steel Substrate Coating Needs

Description

Type:	Coating Production Line	Substrate:	Steel
Condition:	New	Machine Type:	Powder Coating Machine, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Coating:	Vacuum Coating
Dimension(LWH):	Customized	Warranty:	18 Months
Key Selling Points:	Competitive Price	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location:	France, Saudi Arabia, Russia, Spain, Uzbekistan	Weight (KG):	40
Product Name:	Spray Coating Machine	Function:	Metal Surface Powder Coating
Warranty Period:	18 Months
Highlight:	steel substrate powder coating machine , steel substrate powder coating spray machine , building powder coating machine

powder equipment electrostatic spray gun powder coating machine spray machine

e advantages of electrostatic powder spray machines include:

Uniform Coating: They achieve a more uniform coating, reducing paint waste.
Strong Adhesion: The electrostatic effect allows powder coatings to adhere better to the surface of workpieces, enhancing coating adhesion.
Environmental Friendliness: They do not use solvents, reducing the release of volatile organic compounds (VOCs) and being more eco-friendly.
High Efficiency: The spraying efficiency is high, and coatings can be cured quickly, improving production efficiency.

_Voltage	_100~240VAC
_Frenquency	_50/60HZ
_power	_50W
_{Safety Level}	_IP54
_{Ambient Temperature}	_0-40°C
_{Input Air pressure}	_{0.55MPa(5.5bar,80PSI)}
_{Maximum powder injection}	_600g/min
_{Gun weight}	_480g
_{Maximum Output Voltage}	_120kv
_{Maximum Output Current}	_120µA
_{The length of Powder Tube}	_3.5meters
Accessories included in the machine	Quantity

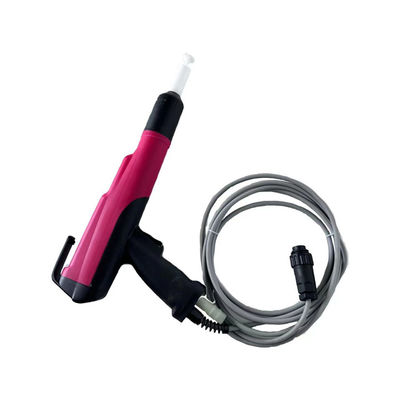

_Gun	_{1 SET}

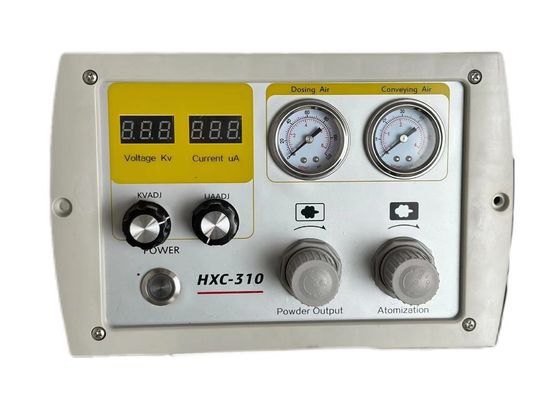

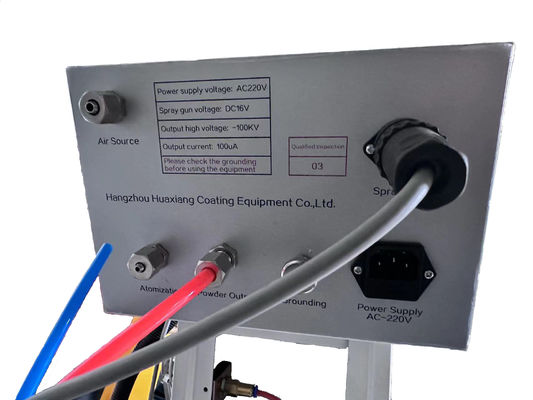

_Controller	_{1 SET}
_{Low Temperature Soft Powder Pipe}	_{1 SET /3.5Meters}

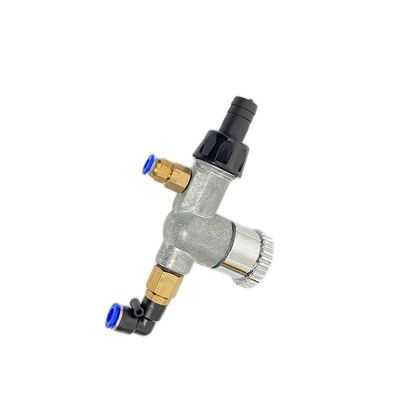

_{Vertical Powder Pump}	_{1 SET}
_{Stainless Steel Barrel}	_{1 SET /40L-45L}
_{Overflow Pipe}	_{1 SET}
_{Movable Trolley}	_{1 SET}
_{Oil and Water Separator}	_{1 SET}
_Consumables	_Some
Net weight of machine	40KG
package Size ,Weight	500mm(L)500mm(W)1020mm(H), 45-50KG
