Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment

I'm Online Chat Now

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment

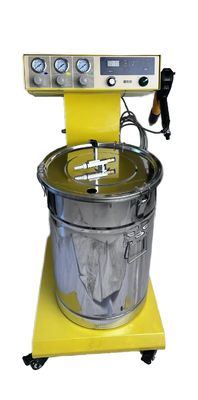

Large Image :  Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment

Product Details:
Place of Origin: zhejiang
Brand Name: huaxiang
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $385.00/pieces 1-10 pieces

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment

Description
Type: Coating Production Line Substrate: Steel
Condition: New Machine Type: Powder Coating Machine, Coating Equipment
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Warranty Of Core Components: 1 Year
Core Components: Motor, Engine, Pressure Vessel, Gearbox, PLC, Pump, Bearing, Gear Coating: Vacuum Coating
Dimension(L*W*H): Customized Warranty: 1 Year
Key Selling Points: Competitive Price Applicable Industries: Farms, Building Material Shops, Printing Shops, Machinery Repair Shops, Advertising Company, Manufacturing Plant, Retail, Energy & Mining, Construction Works
Showroom Location: France, Saudi Arabia, Russia, Uzbekistan, Spain Weight (KG): 40
Product Name: Spray Coating Machine Function: Metal Surface Powder Coating
Highlight:

pt-s45-5 powder coating machine

,

pt-s45-5 powder coating spray machine

,

metal surface powder coating machine

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 0
Spraying Gun Paint 550g/min PT-S45-5 Powder Coating Electrostatic Sprayer Painting Equipment Machine Metal Coating Machinery 33
  • High Efficiency

    • Utilizes electrostatic attraction principles, achieving powder coating utilization rates of over 90%, thereby reducing material waste.
  • Uniform Coating

    • Capable of achieving consistent coating thickness, ensuring high-quality finishes and minimizing coating defects.
  • Environmental Friendliness

    • Does not require solvents, which reduces harmful emissions, making it more environmentally friendly.
  • Strong Adaptability

    • Suitable for various shapes and materials, including complex and irregular surfaces.
  • Ease of Operation

    • Modern equipment often comes with intelligent control systems, making it user-friendly and easy to adjust spraying parameters.
  • Durability

    • Powder coatings exhibit good wear resistance, corrosion resistance, and weather resistance, extending the product's lifespan.
  • Low Operating Costs

    • High powder utilization and relatively low maintenance costs contribute to overall lower operating expenses.
  • Diverse Coating Effects

    • Capable of achieving various colors and effects, meeting different customer needs.
Voltage
100~240VAC
Frenquency
50/60HZ
power
50W
Safety Level
IP54
Ambient Temperature
0-40°C
Input Air pressure
0.55MPa(5.5bar,80PSI)
Maximum powder injection
600g/min
Gun weight
480g
Maximum Output Voltage
120kv
Maximum Output Current
120µA
The length of Powder Tube
3.5meters
Accessories included in the machine
Quantity
Gun
1 SET
Controller
1 SET
Low Temperature Soft Powder Pipe
1 SET /3.5Meters
Vertical Powder Pump
1 SET
Stainless Steel Barrel
1 SET /40L-45L
Overflow Pipe
1 SET
Movable Trolley
1 SET
Oil and Water Separator
1 SET
Consumables
Some
Net weight of machine
40KG
package Size ,Weight
500mm(L)*500mm(W)*1020mm(H), 45-50KG

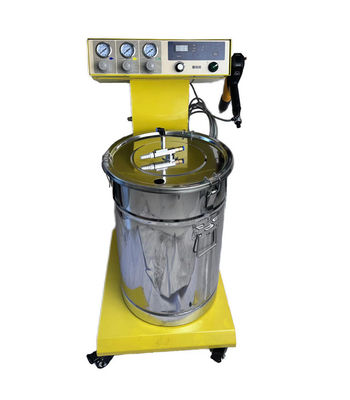

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 1

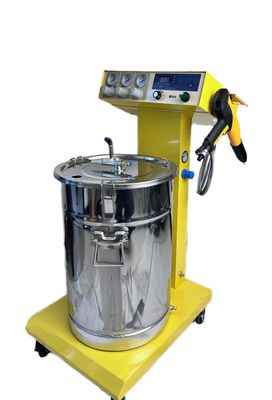

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 2

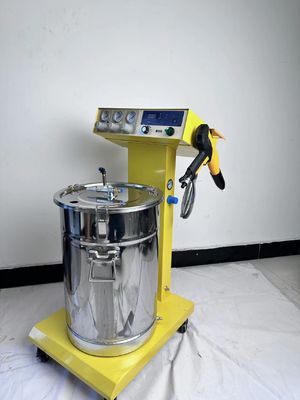

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 3

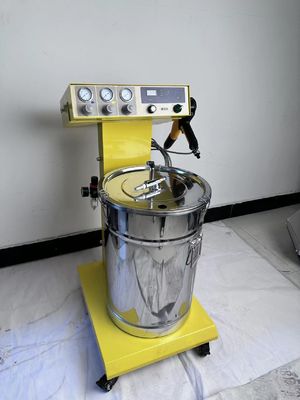

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 4

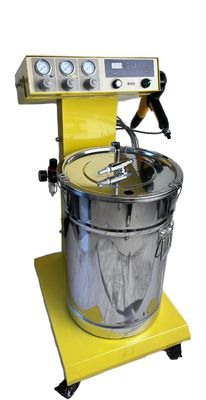

Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 5
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 6
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 7
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 8
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 9
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 10
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 11
Metal Surface Powder Coating Function PT-S45-5 Electrostatic Sprayer Painting Equipment 12
