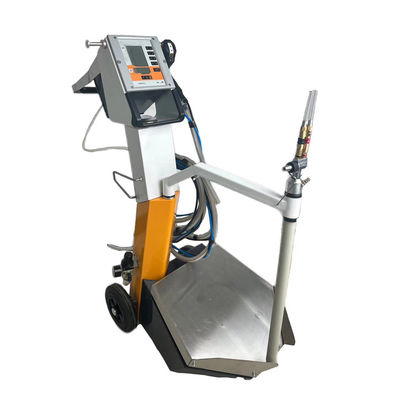

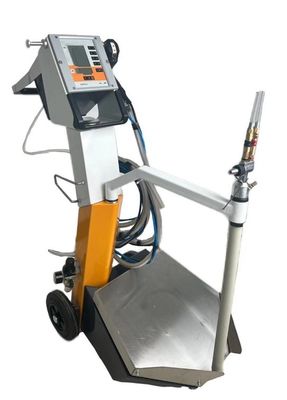

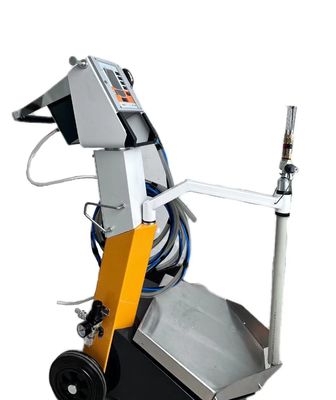

PT-S45-5 Powder Coating Sprayer for Metal Coating Machinery at 450g/min Output

Large Image : PT-S45-5 Powder Coating Sprayer for Metal Coating Machinery at 450g/min Output

Product Details:

Place of Origin:	zhejiang
Brand Name:	huaxiang

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,500.00/pieces 1-10 pieces

Contact Now

PT-S45-5 Powder Coating Sprayer for Metal Coating Machinery at 450g/min Output

Description

Type:	Coating Production Line	Substrate:	Steel
Condition:	New	Machine Type:	Powder Coating Machine, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Coating:	Vacuum Coating
Dimension(LWH):	Customized	Warranty:	1 Year
Key Selling Points:	Competitive Price	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location:	France, Saudi Arabia, Russia, Spain, Uzbekistan	Weight (KG):	40
Product Name:	Spray Coating Machine	Function:	Metal Surface Powder Coating
Highlight:	pt-s45-5 powder coating sprayer , pt-s45-5 powder coating machine , building powder coating machine

Spraying Gun Paint 450g/min PT-S45-5 Powder Coating Electrostatic Sprayer Painting Equipment Machine Metal Coating Machinery 33

The vibrating suction type Jinma electrostatic powder coating machine, with its high efficiency, environmental friendliness, and excellent coating quality, is widely used in industries such as automotive, home appliances, and furniture. It is an essential piece of equipment in modern coating technology.

Voltage	100~240VAC
Frenquency	50/60HZ
power	50W
Safety Level	IP54
Ambient Temperature	0-40°C
Input Air pressure	0.55MPa(5.5bar,80PSI)
Maximum powder injection	600g/min
Gun weight	480g
Maximum Output Voltage	120kv
Maximum Output Current	120µA
The length of Powder Tube	3.5meters
Accessories included in the machine	Quantity
Gun	1 SET

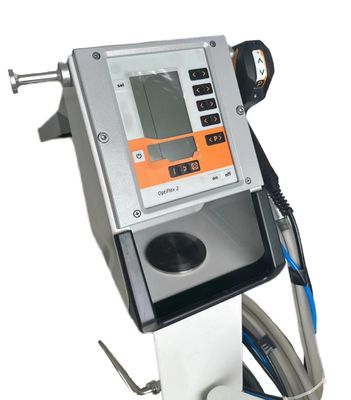

Controller	1 SET
Low Temperature Soft Powder Pipe	1 SET /3.5Meters
Vertical Powder Pump	1 SET
Stainless Steel Barrel	1 SET /40L-45L
Overflow Pipe	1 SET
Movable Trolley	1 SET
Oil and Water Separator	1 SET
Consumables	Some
Net weight of machine	40KG
package Size ,Weight	500mm(L)500mm(W)1020mm(H), 45-50KG
