Product Details:
|
| Type: | Coating Production Line | Substrate: | Steel |
|---|---|---|---|
| Condition: | New | Machine Type: | Powder Coating Machine, Coating Equipment |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Coating: | Vacuum Coating |
| Voltage: | 110V,220V,380V,460V, 110v/220v | Power: | 50KW |
| Dimension(L*W*H): | Customized | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Showroom Location: | None | Weight (KG): | 28 |

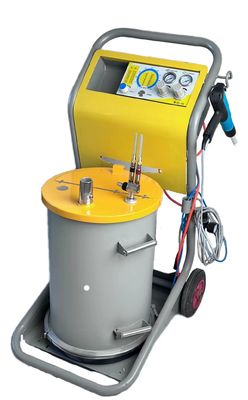

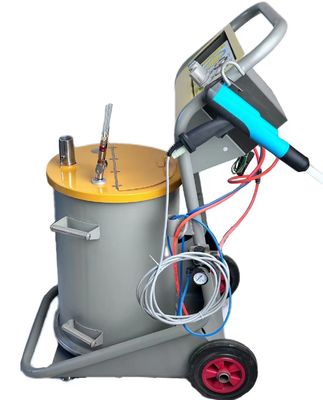

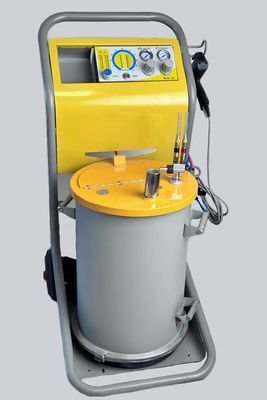

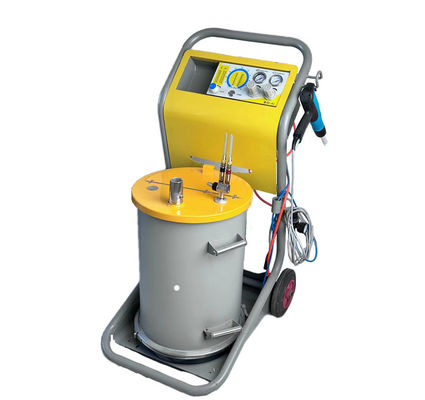

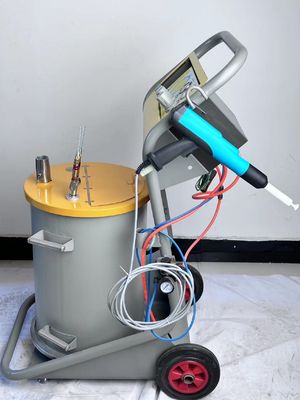

| Product Name: | Spray Coating Machine | Function: | Metal Surface Powder Coating |
| Maximum Powder Injection: | 600g/min | Maximum Output Voltage: | 0-100KV ( Adjustable) |
| Highlight: | PT-S45-5 Powder Coating Paint Machine,Metal Equipment Powder Coating Paint Machine,Multipurpose Metal Coating Machine |
||
2.This electrostatic powder coating machine is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". Applying the electrostatic powder coating to objects is to give negative electric charge to the powder, which is then sprayed towards your workpiece by high voltage electrostatic and then the power will be attracted onto the workpiece.
3.We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.
|
Voltage
|
110v/220v
|
|
Frenquency
|
50/60HZ
|
|
Input power
|
50W
|
|
Max. output current
|
200ua
|
|
Output power voltage
|
0-100kv
|
|
Input Air pressure
|
0.3-0.6Mpa
|
|
Maximum output voltage
|
0-100KV ( adjustable)
|
|
Maximum powder injection
|
600g/min
|
|
Polarity
|
Negative
|
|
Gun weight
|
480g
|
