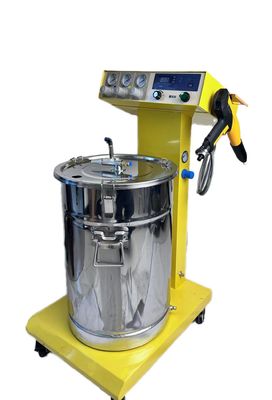

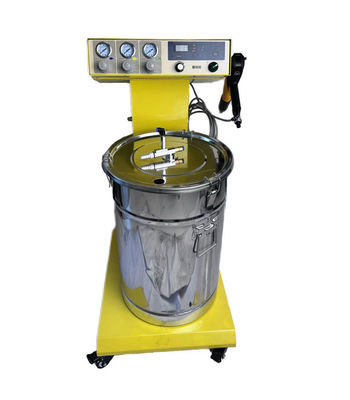

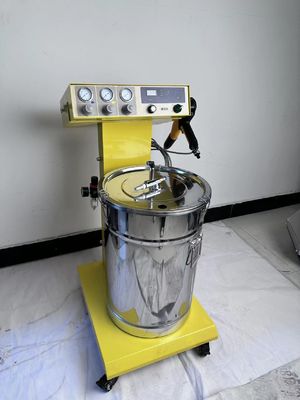

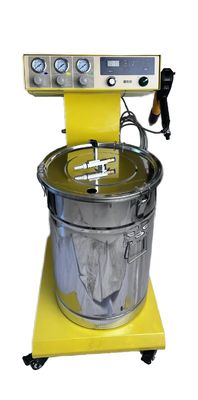

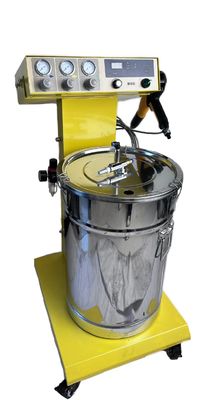

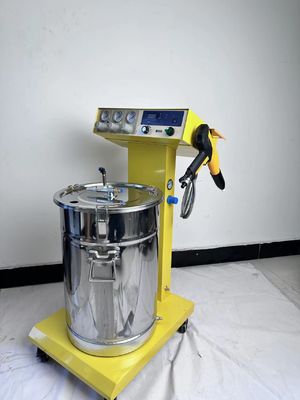

Steel Substrate 550g/min PT-S45-5 Powder Coating Sprayer for Metal Coating Machinery

Large Image : Steel Substrate 550g/min PT-S45-5 Powder Coating Sprayer for Metal Coating Machinery

Product Details:

Place of Origin:	zhejiang
Brand Name:	huaxiang

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$388.00/pieces 1-20 pieces

Contact Now

Steel Substrate 550g/min PT-S45-5 Powder Coating Sprayer for Metal Coating Machinery

Description

Type:	Coating Production Line	Substrate:	Steel
Condition:	New	Machine Type:	Powder Coating Machine, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product	Warranty Of Core Components:	1 Year
Core Components:	Motor, Engine, Pressure Vessel, Gearbox, PLC, Pump, Bearing, Gear	Coating:	Vacuum Coating
Dimension(LWH):	Customized	Warranty:	1 Year
Key Selling Points:	Competitive Price	Applicable Industries:	Farms, Building Material Shops, Printing Shops, Machinery Repair Shops, Advertising Company, Manufacturing Plant, Retail, Energy & Mining, Construction Works
Showroom Location:	France, Saudi Arabia, Russia, Uzbekistan, Spain	Weight (KG):	40
Product Name:	Spray Coating Machine	Function:	Metal Surface Powder Coating
Highlight:	pt-s45-5 powder coating sprayer , pt-s45-5 powder coating machine , steel substrate powder coating machine

Spraying Gun Paint 550g/min PT-S45-5 Powder Coating Electrostatic Sprayer Painting Equipment Machine Metal Coating Machinery 33

Voltage	100~240VAC
Frenquency	50/60HZ
power	50W
Safety Level	IP54
Ambient Temperature	0-40°C
Input Air pressure	0.55MPa(5.5bar,80PSI)
Maximum powder injection	600g/min
Gun weight	480g
Maximum Output Voltage	120kv
Maximum Output Current	120µA
The length of Powder Tube	3.5meters
Accessories included in the machine	Quantity
Gun	1 SET
Controller	1 SET
Low Temperature Soft Powder Pipe	1 SET /3.5Meters
Vertical Powder Pump	1 SET
Stainless Steel Barrel	1 SET /40L-45L
Overflow Pipe	1 SET
Movable Trolley	1 SET
Oil and Water Separator	1 SET
Consumables	Some
Net weight of machine	40KG
package Size ,Weight	500mm(L)500mm(W)1020mm(H), 45-50KG
