                        Product Details:


 |
| Type: | Coating Production Line | Substrate: | Steel |
|---|---|---|---|
| Condition: | New | Machine Type: | Powder Coating Machine, Coating Equipment |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine, Pressure Vessel, Gearbox, PLC, Pump, Bearing, Gear | Coating: | Vacuum Coating |
| Dimension(L*W*H): | Customized | Warranty: | 18 Months |
| Key Selling Points: | Competitive Price | Applicable Industries: | Farms, Building Material Shops, Printing Shops, Machinery Repair Shops, Advertising Company, Manufacturing Plant, Construction Works , Retail, Energy & Mining |
| Showroom Location: | France, Saudi Arabia, Russia, Uzbekistan, Spain | Weight (KG): | 40 |
| Product Name: | Spray Coating Machine | Function: | Metal Surface Powder Coating |
| Warranty Period: | 18 Months | ||
| Highlight: | steel powder coating spray gun,steel manual powder coating gun | ||

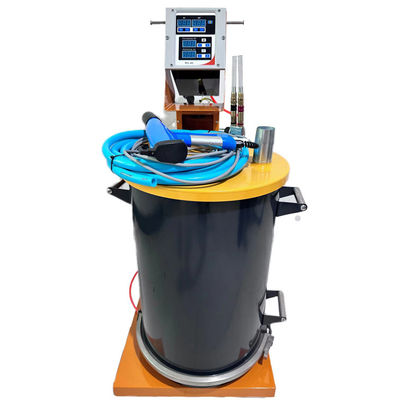

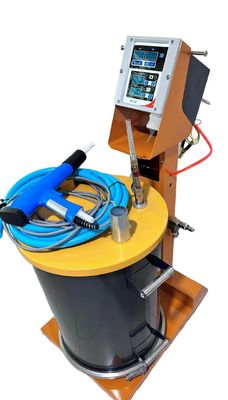

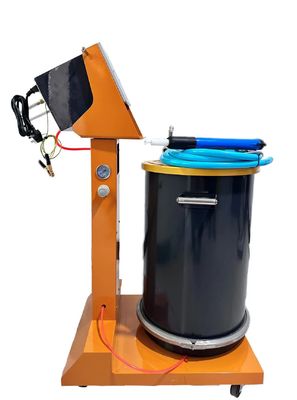

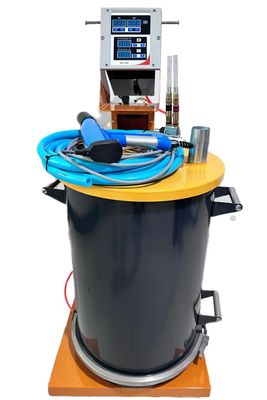

HXC-Electrostatic Powder Coating Machines
High Efficiency:
Uniform Coating: Electrostatic spraying technology ensures that powder adheres evenly to the surface of workpieces, resulting in consistent coating thickness and better appearance.
High Utilization Rate: Unattached powder can be recycled and reused, reducing material waste.
Environmentally Friendly:
Solvent-Free: Powder coatings do not contain volatile organic compounds (VOCs), making them environmentally friendly and reducing air pollution.
Waste Reduction: The ability to recycle unused powder lowers waste generation.
Superior Coating Performance:
Corrosion Resistance: Electrostatic powder coatings typically offer stronger corrosion and wear resistance, extending the lifespan of the items.
Excellent Adhesion: The electrostatic effect enhances the adhesion between the coating and the substrate, reducing the risk of peeling.
Diverse Options:
Variety of Colors and Effects: Offers a wide range of colors, gloss levels, and effects (such as matte, gloss, texture, etc.), catering to different needs.
Wide Applicability:
Multiple Materials: Suitable for surface treatment of various materials, including metals and plastics, widely used in industries such as automotive, appliances, and furniture.
Cost-Effectiveness:
Lower Long-Term Costs: The durability of the coatings reduces the frequency of maintenance and re-coating, thereby lowering overall costs.
Safety:
Reduced Fire Risk: Electrostatic spraying is relatively safe, and the fire resistance of the powder itself is better than some liquid coatings, reducing fire hazards.





| Voltage | 100~240VAC |
| Frenquency | 50/60HZ |
|  power | 50W |
| Safety Level | IP54  |
| Ambient Temperature | 0-40°C |
| Input Air pressure | 0.55MPa(5.5bar,80PSI) |
| Maximum powder injection | 600g/min |
| Gun weight | 480g |
| Maximum Output Voltage | 120kv |
|  Maximum Output Current | 120µA |
| The length of Powder Tube | 3.5meters |
| Accessories included in the machine | Quantity |

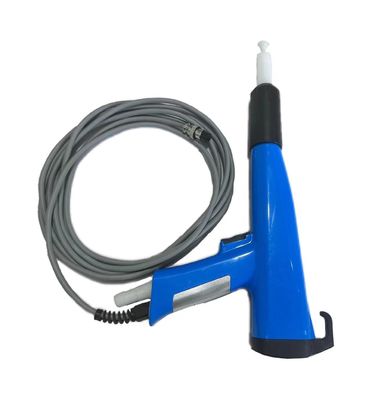

| Gun | 1 SET |
| Controller | 1 SET |

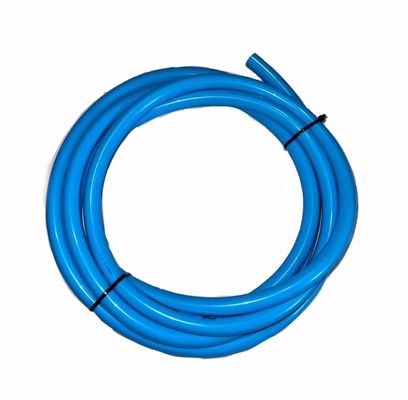

| Low Temperature Soft Powder Pipe | 1 SET /3.5Meters |
| Vertical Powder Pump | 1 SET |
| Stainless Steel Barrel | 1 SET /40L-45L |
| Overflow Pipe | 1 SET |
| Movable Trolley | 1 SET |
| Oil and Water Separator | 1 SET |
| Consumables   | Some |
| Net weight of machine | 40KG |
| package  Size ,Weight | 500mm(L)*500mm(W)*1020mm(H),  45-50KG  |
