550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery

550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery

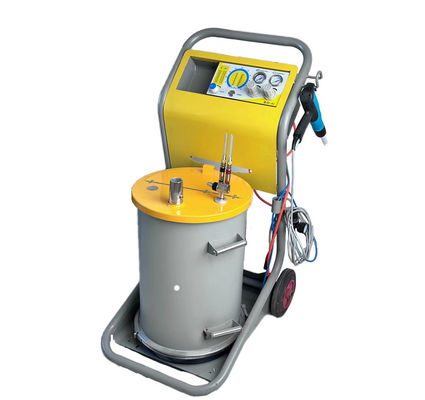

Large Image :  550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery

Product Details:
Place of Origin: zhejiang
Brand Name: huaxiang
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $755.00/pieces 1-10 pieces
Contact Now

550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery

Description
Type: Coating Production Line Substrate: Steel
Condition: New Machine Type: Powder Coating Machine, Coating Equipment
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump Coating: Vacuum Coating
Voltage: 110V,220V,380V,460V, 110v/220v Power: 50KW
Dimension(L*W*H): Customized Warranty: 1 Year
Key Selling Points: Competitive Price Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location: None Weight (KG): 28
Product Name: Spray Coating Machine Function: Metal Surface Powder Coating
Maximum Powder Injection: 600g/min Maximum Output Voltage: 0-100KV ( Adjustable)
Highlight:

steel ungrouped

,

steel manual powder coating gun


Products Show
Electrostatic powder spraying process 1. The basic principle of electrostatic powder spraying The basic principle of forming a high voltage corona discharge electric field between the spray gun and the workpiece, when the powder particles are sprayed by the spray gun mouth through the discharge area, they are filled with a large number of electrons, becoming negatively charged particles, under the action of electrostatic attraction, are adsorbed to the positively charged workpiece

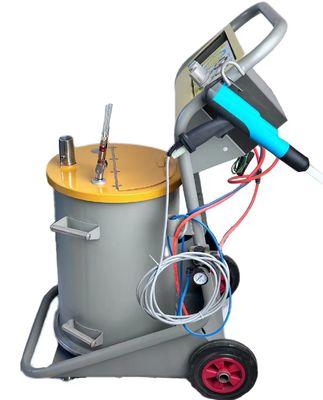

550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 0

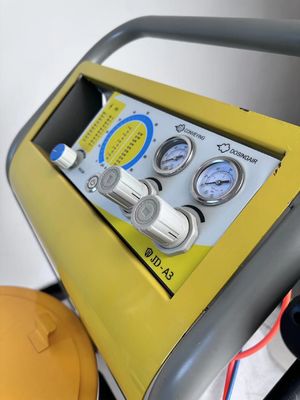

550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 1

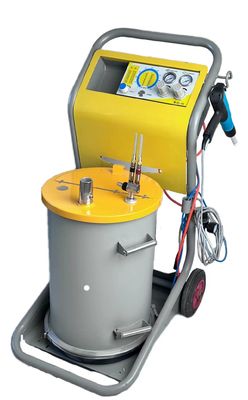

550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 2

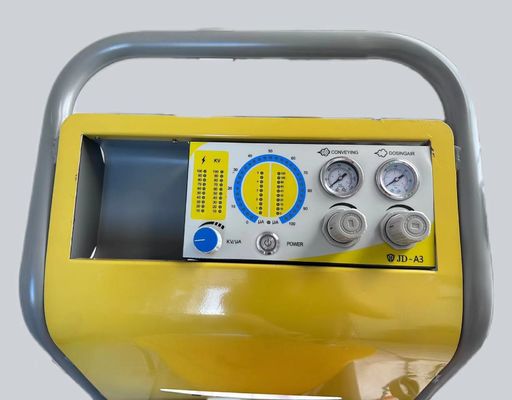

550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 3

Product parameter
Product parameter
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 4
Voltage
110v/220v
Frenquency
50/60HZ
Input power
50W
Max. output current
200ua
Output power voltage
0-100kv
Input Air pressure
0.3-0.6Mpa
Maximum output voltage
 0-100KV ( adjustable)
Maximum powder injection
600g/min
Polarity
Negative
Gun weight
480g

Company profile
Company profile
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 5
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 6

Cooperation
Cooperation
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 7

Certificate
Certificate
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 8
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 9
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 10
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 11

Transportation
Transportation
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 12

FAQ
FAQ
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 13
Q: Are you trading company or manufacturer ?
A: We are factory.We are a manufacturer

Q: How long is your delivery time?
A: Generally it is 3-7days if the goods are in stock.

Q: What is your terms of payment ?
A: 100% in advance.

If you have another question, pls feel free to contact us
(Victoria)
WhatsApp:+ 86 18058714536
WeChat:+ 86 18058714536
550g/min PT-S45-5 Powder Coating Electrostatic Sprayer for Metal Coating Machinery 14
