Product Details:
|
| Type: | Powder Coating Oven | Substrate: | Iron |
|---|---|---|---|
| Condition: | New | Machine Type: | Powder Coating Oven, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller, Coating Equipment |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 2 Years |
| Core Components: | PLC, Engine, Pressure Vessel | Coating: | Powder Coating |
| Voltage: | 380V/220V | Power: | 11000(W) |
| Dimension(L*W*H): | Customized Size | Warranty: | 2 Years |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining, Advertising Company |
| Showroom Location: | Egypt, Italy, Peru, Russia, Chile, UAE, Bangladesh | Weight (KG): | 450 |
| Nominal Power: | 50W | Power Supply: | Electric |
| Application: | Color Coating | Output Voltage: | 0-100KV Adjustable |
| Port: | Shanghai | ||
| Highlight: | Profile Machine Large Powder Coating Oven,Gas Heating Large Powder Coating Oven,High Output Commercial Powder Coating Oven |
||

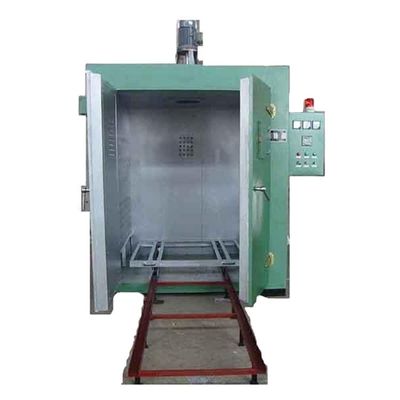

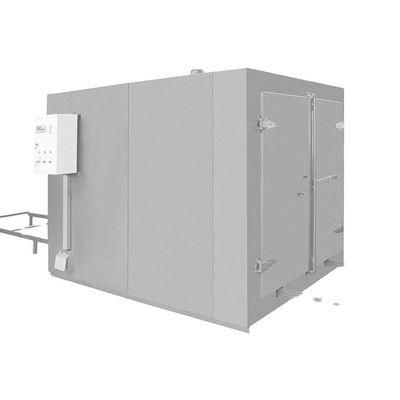

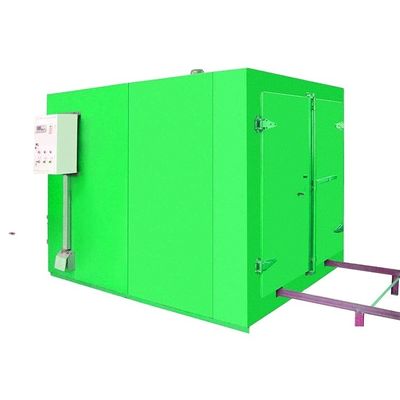

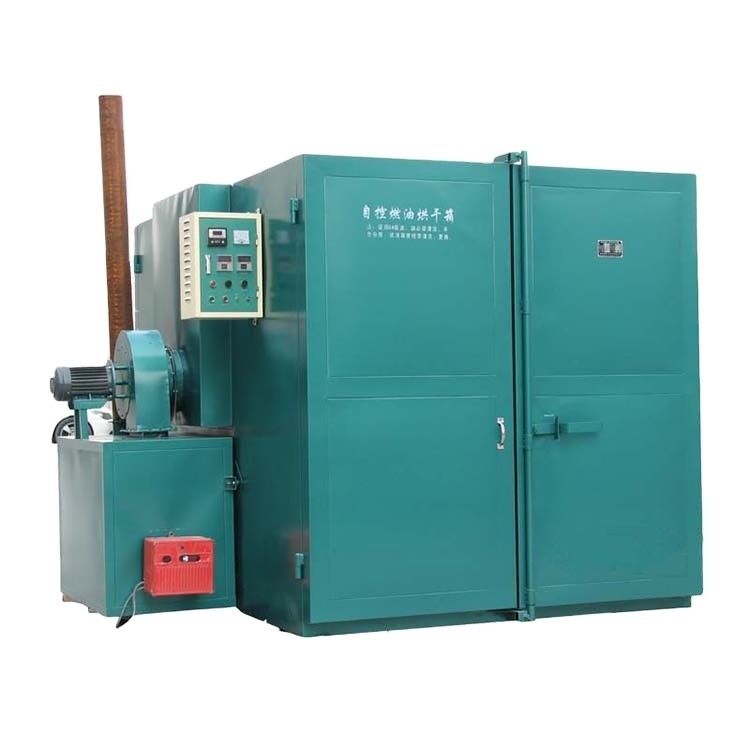

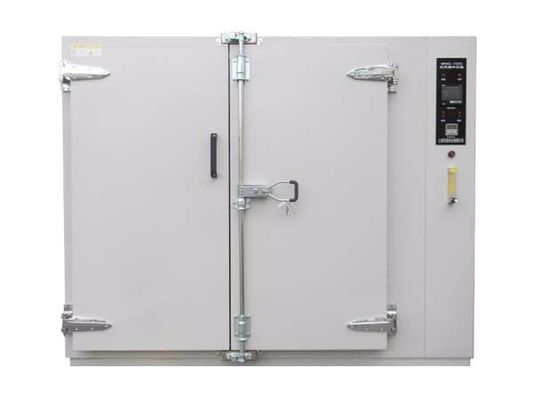

Name: Powder Coating Curing oven
A powder curing oven is a specialized oven used in the powder coating process to cure or "bake" the powder coating onto the
surface of a workpiece. After the powder is electrostatically sprayed onto the workpiece, it is transferred to the curing oven.
The curing oven heats the workpiece to a specific temperature for a certain amount of time to melt and fuse the powder particles,
creating a durable and smooth coating.
we according products characters and customer's requirements to design the powder coating line:
① Energy options: Gas, LPG, Electric, Coal, etc.
② Transportation method: ground rail, conveyor trolley, top rail, etc.
③ Size: Small, medium, and large.
|
Machine Type
|
powder coating oven
|
|
Warranty of core components
|
2 Years
|
|
Weight (KG)
|
450 KG
|
|
Voltage
|
380V/220V (Custom Voltage Available) 3 phase, 380/415V(50-60Hz)
|
|
Power
|
2.2KW
|
|
Dimension(L*W*H)
|
1900w x 3100 d x 2000 h
|
|
Warm-up Time
|
15-30 Min. (180° C)
|
|
Temperature Max.
|
250° C
|
|
Temperature Stability
|
< ± 3-5°C
|
|
Ventilation Performance
|
1131-2565m3/h
|
|
Circulation/ Air flow
|
Vertical ,Variable through holes on the walls
|
|
Packaging Details
|
each set in a wooden case or EPE package
|
