Metal Coating Machinery Customized Powder Coating Plant with Oven and Automatic Spray Gun

A powder coating machine typically consists of several key components to ensure effective powder coating and high-quality finishes. Here are the main components of a powder coating machine:

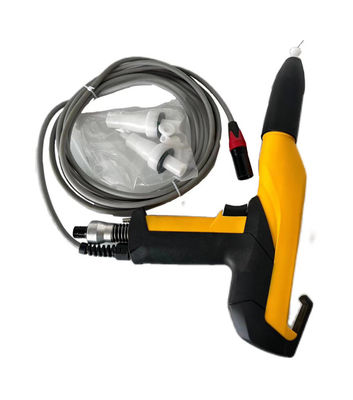

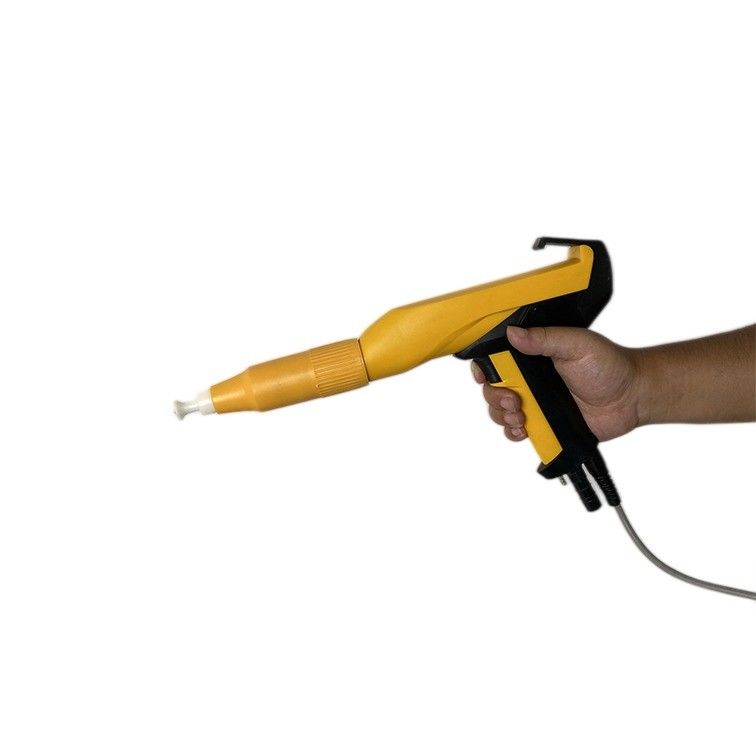

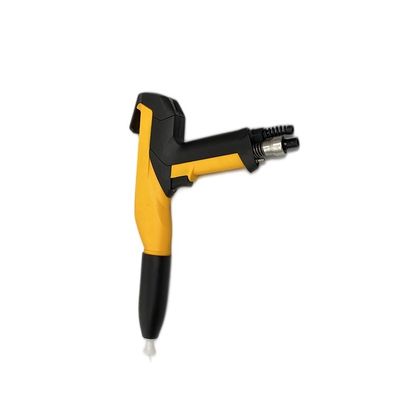

1. Spray Gun:

   • Responsible for spraying the powder in a high-pressure air stream and charging the powder using an electric field.
   • Includes a nozzle and electrode, with the nozzle controlling the powder output and spraying pattern.

2. Powder Supply System:

   • Comprises a powder hopper and conveying devices, responsible for transporting powder from the storage container to the spray gun.
   • May use pneumatic or mechanical conveyance to ensure a consistent powder supply.

3. Power Control Unit:

   • Provides high-voltage power to charge the electrodes in the spray gun.
   • Controls the voltage and current to ensure stable charging of the powder during spraying.

4. Spraying Chamber:

   • A specialized environment designed for powder spraying, usually equipped with good ventilation and filtration systems to prevent powder leakage and contamination.
   • Helps collect unused powder, reducing waste.

5. Control System:

   • Includes a PLC or other controllers to monitor and adjust various parameters during the spraying process, such as spraying time, speed, and voltage.
   • May feature a touchscreen interface for easy operation and settings.

6. Gas Supply System:

   • Provides compressed air or nitrogen to propel the powder and clean the spray gun.
   • Ensures stability and consistency of airflow during spraying.

7. Recovery System:

   • Responsible for collecting powder that does not adhere to the workpiece, usually through filters and conveyors to return the powder to the hopper.
   • Reduces waste and enhances material utilization.

8. Curing Equipment:

   • Typically an oven that heats the coated workpieces to a specific temperature to cure the powder and form a durable coating.

9. Safety and Protective Devices:

   • Includes explosion prevention devices, dust monitors, etc., to ensure operational safety and environmental protection.

These components work together to achieve an efficient and stable powder coating process, ensuring the quality and performance of the final coating.
