High Capacity Automated Powder Coating Line Safety Operation Powder Coat Paint Line

Name: High Capacity Automated Powder Coating Line Safety Operation Powder Coat Paint Line
Brand: Hangzhou Huaxiang Coating Equipment Co., Ltd.
Availability: InStock

All Products

Powder Coating Machine
(594)

Powder Spray Gun
(106)

Powder Coating Line
(26)

Powder Coating Reciprocator
(3)

Powder Coating Curing Oven
(8)

Powder Coating Gun
(45)

Powder Gun Accessories
(12)

Electrostatic Flocking Machine
(1)

Ungrouped
(162)

I'm Online Chat Now

High Capacity Automated Powder Coating Line Safety Operation Powder Coat Paint Line

Large Image : High Capacity Automated Powder Coating Line Safety Operation Powder Coat Paint Line

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hua xiang cun

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$20,000.00 - $30,000.00/sets
Packaging Details:	Wooden box as export standard.
Supply Ability:	2000 Set/Sets per Month

Contact Now

High Capacity Automated Powder Coating Line Safety Operation Powder Coat Paint Line

Description

Type:	Powder Coating Machine Line System	Substrate:	Iron
Condition:	New	Machine Type:	Powder Coating Oven, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	2years
Core Components:	PLC, Engine, Pressure Vessel	Coating:	Powder Coating
Voltage:	380V/220V	Power:	11000(W)
Dimension(LWH):	Customized Size	Warranty:	2 Years
Key Selling Points:	Competitive Price	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location:	Egypt, Italy, Peru, Russia, Chile, UAE, Bangladesh	Weight (KG):	450
Temperature Range:	0~100(℃)	Power Supply:	Electric
Output Voltage:	0-100KV Adjustable	Port:	Shanghai
Highlight:	High Capacity Automated Powder Coating Line , Safety Operation Automated Powder Coating Line , Safety Operation Powder Coat Paint Line

Product parameter

Name: Automatic Powder Coating Line/ System
A powder coating line is a complete system used in industrial manufacturing to apply dry powder coatings onto workpieces through a series of interconnected stages. provide a controlled and efficient process, with each stage being optimized to ensure
high-quality coatings are achieved consistently. The powder coating system offers many advantages over traditional liquid coating methods, including reduced waste, increased efficiency, and improved environmental impact. Powder coating lines are commonly used in various industries, such as automotive, aerospace, and construction, to coat a variety of materials, including metal, plastic, and wood, etc.

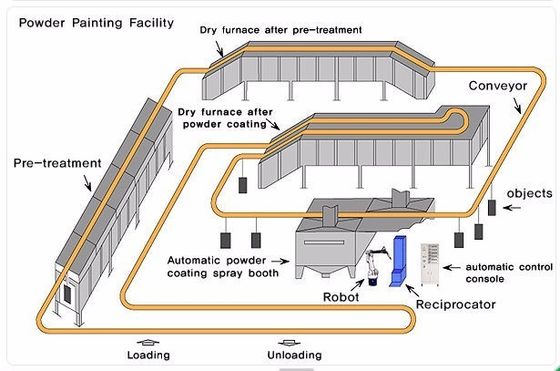

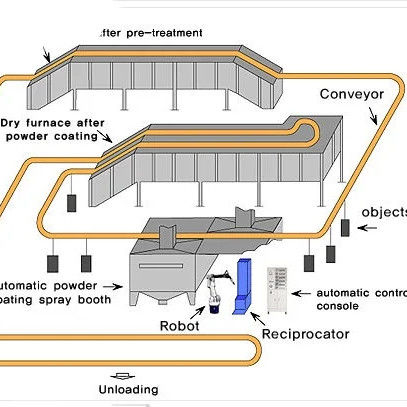

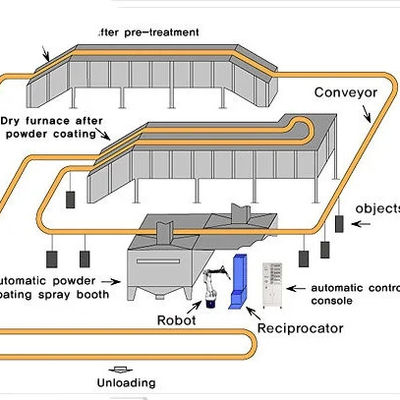

this automatic powder coating line system including pre-treatment——drying oven——cooling zone——automatic powder coating booth——curing oven —— cooling zone and fully automatic conveying system,we according products characters and customer's requirements to design the powder coating line

we provide customers from Design—Production—Installation—Training and After-sales one-stop service.

① Automatic powder coating line
② Manual powder coating line
③ Semi-automatic powder coating line

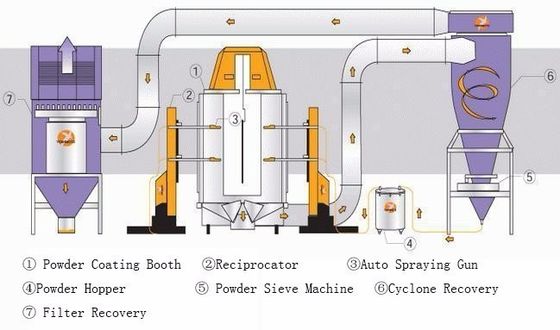

Powder coating line component: Spray pre-treatment system : Dipping pretreatment with overhead crane, or fully automatic spraying pre-treatment. Powder spraying booth: Automatic powder coating reciprocator, Manual powder coating and Semi-auto (Auto-powder coating with manual repairing spraying) are for your choice.

Drying tunnel oven : Drying oven which drying the water after pretreatment is designed according to customer actual conditions. Curing tunnel oven : Tunnel curing oven, bridge type curing oven.
Conveyor system : Closed-circuit conveyor, power and free conveyor, multi-track conveyor, and so on.
Electric control system: PLC control, with or without touch screen.

The specifications you need to tell us.

1. The size of workpiece,especially the max size
2. The max weight of the workpiece
3. Is there any requirements about the suspension of the workpiece?
4. The material of the workpiece
5. The anticipative output for the biggest size of the orkpiece(how many pcs in 8 hours)
6. The length,width and height of the factory available for the powder coating line
7. The heating power:Liquefied Petroleum Gas, Liquefied natural gas,diesel,or electric?
8. Do you need to change colors every day? How many colors do you have in total?
9. Do you need automatic painting or manual painting?
10. Do you need pre-treatment process? If you do,you like spray pre-treatment or bath pre-treatment?
11. The local electricity conditions(_V/_Phase/_Hz)
12. Do you have any special requiremnts about the package?

Weight (KG):4200

Voltage:Customers Local Voltage

Advantage:Easy Operate

certificate:CE ISO9001

Control mode:PLC+touch Screen Automatic Control

Warranty:2 Year

Video outgoing-inspection:Provided
Machinery Test Report:Provided

Company profile

Cooperation

Certificate

Transportation

FAQ

Q: Are you trading company or manufacturer ?
A: We are a 20-year factory, and we welcome you to visit the factory very much.

Q:How long is the delivery time?

A:15-20 days after order confirmation

Q:What should I do if there is a problem with the machine?

A:We provide you with a 2 year warranty. If there is any problem with the machine or spare parts need to be replaced, we will
send it to you by express with in 5 days.Our engineers will help you solve the problem by video phone or telephone.

Q:How to choose the right machine and how to ensure the quality?
A:You can select machines on our website according to your requirements. Or you can let our seller know what specifications you
require or what your parts are, so let our seller recommend the right machine for you. We have many years of trading machines and
exported them to more than 100 countries.

Q:How to pay?
We can conduct transactions on ALI online platform, and you can pay by T/T or credit card. You can also pay to our company's
commercial bank account,Payment ≥ 5000USD, 30% T/T in advance, balance before shipment

If you have another question, pls feel free to contact us , And the price can be negotiated
