Environmental Protection Automatic Powder Coating System Long Lasting

Large Image : Environmental Protection Automatic Powder Coating System Long Lasting

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hua xiang cun

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10,000.00 - $80,000.00/sets

Contact Now

Environmental Protection Automatic Powder Coating System Long Lasting

Description

Type:	Coating Production Line	Substrate:	Iron
Condition:	New	Machine Type:	Powder Coating Oven, Spray Booths, Painting Equipment, Plc Controller Programmable Logic Controller, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	2years
Core Components:	PLC, Engine, Pressure Vessel	Coating:	Powder Coating
Voltage:	380V/220V	Power:	11000(W)
Dimension(LWH):	Customized Size	Warranty:	2 Years
Key Selling Points:	Competitive Price	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining, Advertising Company
Showroom Location:	Egypt, Italy, Peru, Russia, Chile, UAE, Bangladesh	Weight (KG):	450
Temperature Range:	0~100(℃)	Power Supply:	Electric
Output Voltage:	0-100KV Adjustable
Highlight:	Environmental Protection Automatic Powder Coating System , Long Lasting Automatic Powder Coating System , Long Lasting Powder Coating Conveyor Systems

Automatic Electrostatic Powder Coating Spray Machine System Paint Equipment Line For Sale

Name: Automatic Powder Coating Line/ System
A powder coating line is a complete system used in industrial manufacturing to apply dry powder coatings onto workpieces through a series of interconnected stages. provide a controlled and efficient process, with each stage being optimized to ensure
high-quality coatings are achieved consistently. The powder coating system offers many advantages over traditional liquid coating methods, including reduced waste, increased efficiency, and improved environmental impact. Powder coating lines are commonly used in various industries, such as automotive, aerospace, and construction, to coat a variety of materials, including metal, plastic, and wood, etc.

this automatic powder coating line system including pre-treatment——drying oven——cooling zone——automatic powder coating booth——curing oven —— cooling zone and fully automatic conveying system,we according products characters and customer's requirements to design the powder coating line

we provide customers from Design—Production—Installation—Training and After-sales one-stop service.

① Automatic powder coating line
② Manual powder coating line
③ Semi-automatic powder coating line

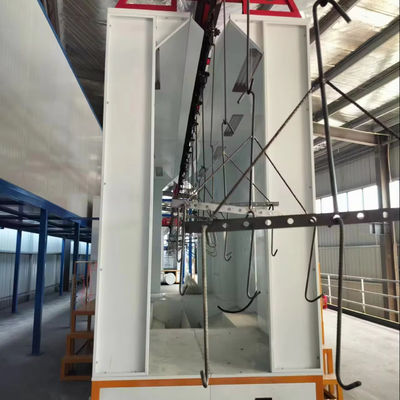

Powder coating line component: Spray pre-treatment system : Dipping pretreatment with overhead crane, or fully automatic spraying pre-treatment. Powder spraying booth: Automatic powder coating reciprocator, Manual powder coating and Semi-auto (Auto-powder coating with manual repairing spraying) are for your choice.

Drying tunnel oven : Drying oven which drying the water after pretreatment is designed according to customer actual conditions. Curing tunnel oven : Tunnel curing oven, bridge type curing oven.

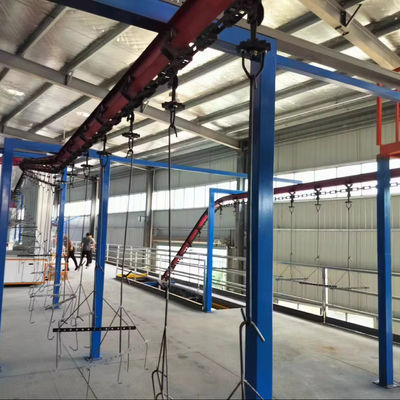

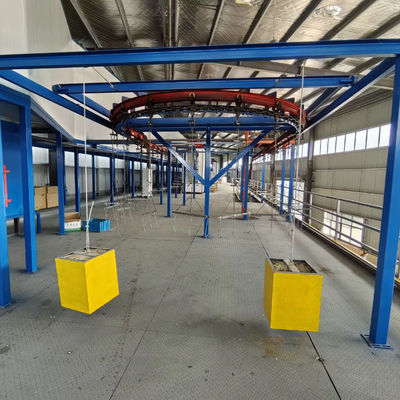

Conveyor system : Closed-circuit conveyor, power and free conveyor, multi-track conveyor, and so on.

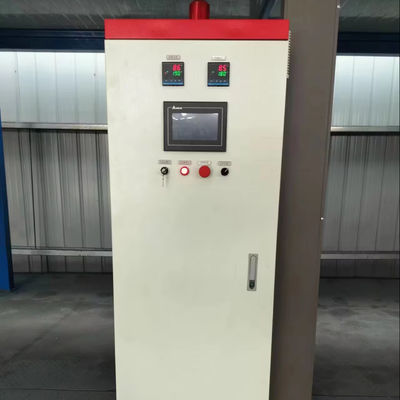

Electric control system: PLC control, with or without touch screen.

The specifications you need to tell us.

1. The size of workpiece,especially the max size
2. The max weight of the workpiece
3. Is there any requirements about the suspension of the workpiece?
4. The material of the workpiece
5. The anticipative output for the biggest size of the orkpiece(how many pcs in 8 hours)
6. The length,width and height of the factory available for the powder coating line
7. The heating power:Liquefied Petroleum Gas, Liquefied natural gas,diesel,or electric?
8. Do you need to change colors every day? How many colors do you have in total?
9. Do you need automatic painting or manual painting?
10. Do you need pre-treatment process? If you do,you like spray pre-treatment or bath pre-treatment?
11. The local electricity conditions(_V/_Phase/_Hz)
12. Do you have any special requiremnts about the package?

Weight (KG):4200

Voltage:Customers Local Voltage

Advantage:Easy Operate

certificate:CE ISO9001

Control mode:PLC+touch Screen Automatic Control

Warranty:2 Year

Video outgoing-inspection:Provided
Machinery Test Report:Provided
