120mm Insulation Metal Powder Coating Line Easy Maintenance UV resistance

1. Pre-treatment System
Cleaning Equipment: Used to clean the surface of workpieces to remove oil, rust, and dust, ensuring good adhesion of the coating.
Phosphating Equipment: Chemically processes the surface to form a protective film that enhances corrosion resistance.
2. Powder Coating Supply System
Powder Storage Bin: Stores powder coatings, keeping them dry and stable.
Conveying System: Transports powder coatings to the spraying equipment, typically using pneumatic or mechanical methods.
3. Spraying Equipment
Electrostatic Powder Spray Gun: Utilizes electrostatic principles to evenly spray powder coatings onto the surface of workpieces.
Automated Spraying Robot: Achieves automated spraying, improving efficiency and consistency.
4. Curing Oven
Oven Equipment: Heats and cures the sprayed powder coatings, forming a durable layer on the workpieces.
5. Cooling System
Cooling Devices: Rapidly cools the workpieces after curing to enhance production efficiency and coating quality.
6. Exhaust Treatment System

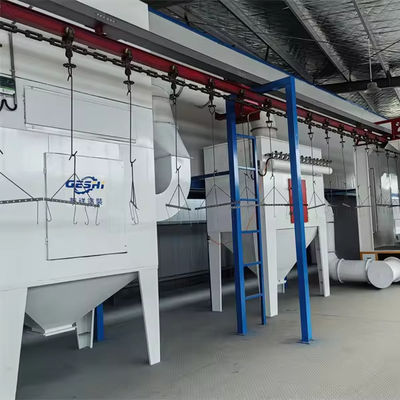

Dust Collection Equipment: Captures dust generated during the spraying process, ensuring a clean working environment.
Exhaust Treatment Device: Handles volatile organic compounds (VOCs) and other harmful gases, complying with environmental regulations.
7. Finished Product Inspection and Packaging
Inspection Equipment: Checks the quality of the coated workpieces to ensure uniformity and adhesion of the coating.
Packaging System: Packages the qualified finished products, preparing them for shipment.
8. Control System
Central Control System: Monitors and controls the operation of the entire production line, including parameter settings, fault alarms, and data recording.
